2016 Subaru WRX STi Limited Radio Pin outs

I had a hard time finding this info, so I’m posting it here.

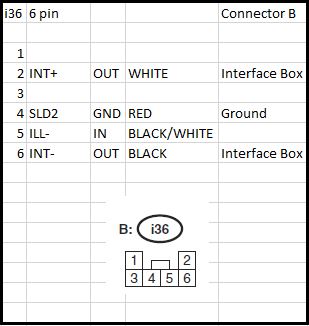

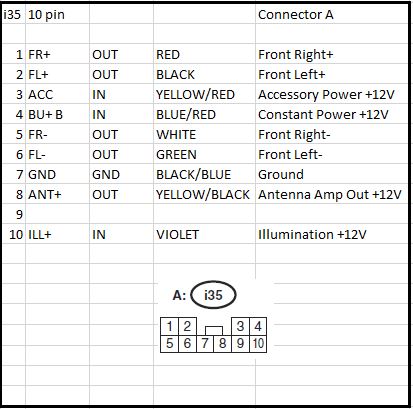

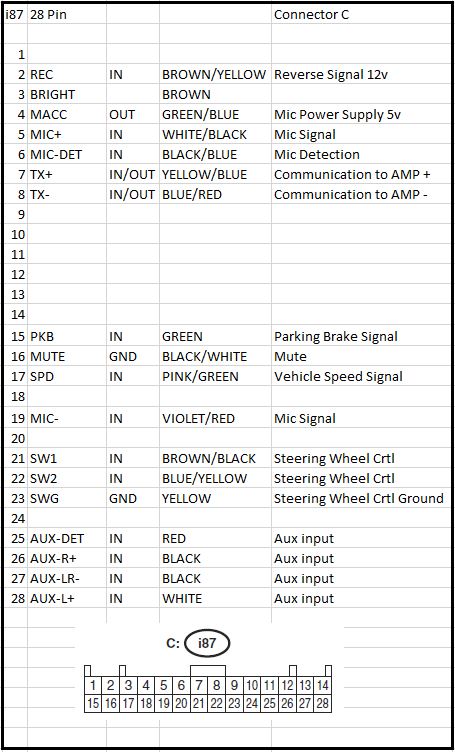

These are the three main connectors to the 7 inch NAV unit on a 2016 WRX STI Limited.

Here’s a doc related the the Harmon Kardon amp in the trunkĀ AUDM Subaru WRX STI (2016) Premium with Harman Kardon package
